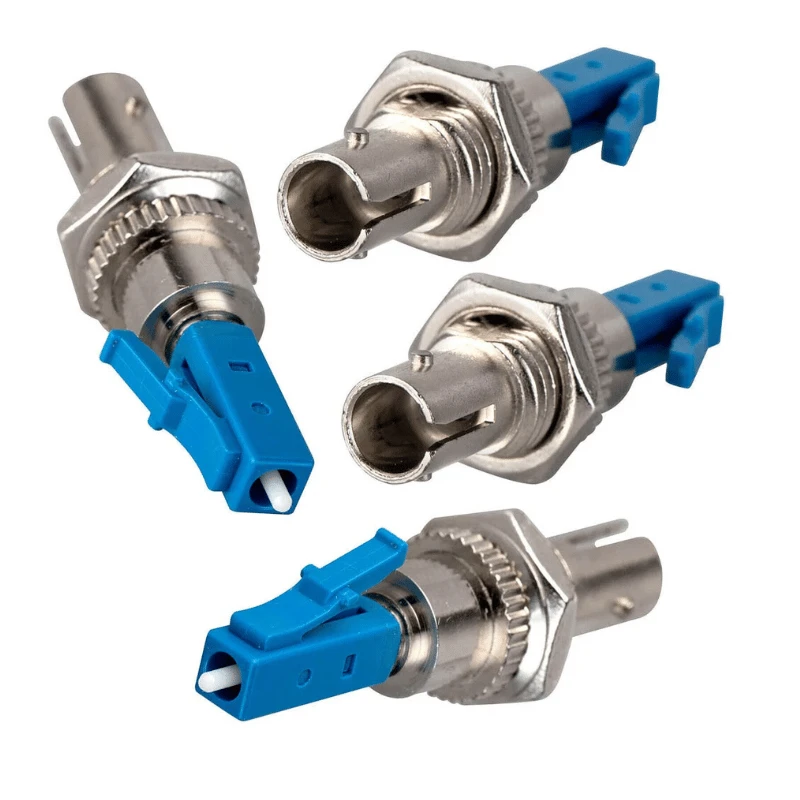

LC rau ST Fiber Optic Cable Adapter yog hybrid fiber optic adapter tsim los txuas LC-tawm fiber ntau nrog ST-tawm fiber ntau yam tsis rov- txiav cov cables uas twb muaj lawm. Nws siv cov khoom sib xyaw ua ke kom muaj kev ruaj ntseg fiber ntau txuas, haum rau singlemode thiab multimode tes hauj lwm.
Adapter Specifications
|
Parameter |
Specification |
|
Hom Adapter |
LC rau ST Hybrid Adapter |
|
LC interface |
LC poj niam |
|
ST interface |
ST poj niam |
|
LC Ferrule |
1.25 hli |
|
ST Ferrule yog |
2.5 hli |
|
Hom Fiber |
Singlemode OS2; Multimode OM1/OM2/OM3/OM4 |
|
Hom Polish |
UPC; APC muaj rau kev teeb tsa |
|
Alignment lub tes tsho |
Zirconia ceramic |
|
Insertion Loss |
Tsawg dua lossis sib npaug li 0.3 dB raug; Tsawg dua lossis sib npaug li 0.5 dB max. |
|
Rov Los Los |
Ntau tshaj lossis sib npaug rau 45 dB UPC; Ntau dua lossis sib npaug rau 60 dB APC |
|
Rov ua dua |
Tsawg dua lossis sib npaug li 0.1 dB |
|
Mating Durability |
Ntau tshaj lossis sib npaug rau 500 cycles |
|
Tsev |
Siab -lub zog yas; hlau vaj tse nyob yeem |
|
Mounting |
Vaj huam sib luag-mount |
|
Ua haujlwm kub |
-25℃rau +70 degree |
|
Kev teeb tsa |
Simplex; duplex sib dhos muaj |
Connector Compatibility
Lub adapter muab cov khoom sib txuas ncaj qha ntawm lc thiab st connectors, ua rau nws tsim nyog thaum cov khoom siv, thaj vaj huam sib luag, lossis cov cabling ntsia siv sib txawv connector interfaces.
Lc sab:Tau tshaj tus qauv lc connectors siv 1.25 hli ferrule.
St sab:Tau tshaj tus qauv st connectors siv 2.5 hli ferrule thiab bayonet coupling.
Singlemode:Txhawb os2 9/125 μm configurations nrog upc lossis siv apc polishing.
Multimode:Txhawb om1 62.5/125 μm thiab om2/om3/om4 50/125 μm configurations.
Connector sib tov:Lub adapter hloov lub connector interface nkaus xwb; cov fibers uas txuas nrog yuav tsum nyob twj ywm rau qhov xav tau kev sib kis thiab kho qhov muag.
Adapter Structure
Lub adapter muaj ib tug LC-sab interface, ST-sab interface, precision alignment tes tsho, vaj tse, thiab mounting qauv.
Lub tes tsho zirconia ceramic tuav ferrule concentricity thaum mating, pab tswj lateral misalignment thiab optical insertion poob.
Tus qauv vaj tsev yog siab -lub zog yas rau kev teeb tsa vaj huam sib luag. Hlau vaj tse, flange hom, snap-nyob rau hauv tuav, threaded mounting, thiab lwm yam hneev taw kev npaj yuav raug teev rau cov khoom uas muaj ntau yam mechanical xav tau.
Daim ntawv thov
Network migration:Txuas tshiab lc- cov khoom siv raws li cov khoom siv tam sim no rau st-tawm fiber ntau qhov chaw yam tsis tau hloov qhov txuas txuas txuas.
Patch panels thiab odfs:Muab kev sib xyaw lc / st txuas hauv fiber ntau faib thiab patching tshuab.
Cov cuab yeej kuaj:Interfaces lc thaj qaum nrog cov chaw nres nkoj ntawm cov khoom siv ntsuas qhov muag thiab cov khoom ntsuas.
Telecommunication networks:Txhawb kev sib xyaw ua ke- connector installations thaum lub sij hawm network expansion lossis hloov khoom siv.
Enterprise thiab campus networks:Tsim nyog rau cov txheej txheem qub qub uas tseem nyob hauv kev pabcuam nrog lc- khoom siv.
Industrial thiab instrumentation systems:Muab kev sib txuas hloov pauv qhov twg cov khoom siv fiber ntau siv st interfaces.
Hybrid adapters yog siv tshwj xeeb rau kev sib xyaw ua ke -ib puag ncig txuas thiab cov khoom siv tsiv teb tsaws chaw uas rov ua dua - txiav tawm tsis xav tau.
Customization / OEM
Interface kev sib txuas:Lc-st, lc-sc, lc-fc, sc-st thiab lwm yam hybrid configurations.
Fiber hom:Os 2, om1, om2, om3 or om4.
Polish:Upc lossis apc qhov twg mechanically thiab optically sib xws.
Tsev nyob:Yas lossis hlau; customized xim identification muaj.
Mounting:Flange, threaded, snap-hauv lossis cov neeg siv khoom- qhia txog vaj huam sib luag hneev taw.
Configuration:Simplex los yog ua khub duplex kev npaj.
Kev txheeb xyuas:Logo, ib feem naj npawb, connector ID thiab lwm yam cim.
Ntim:Kev ntim khoom ntau, ib lub hnab, ua ntej- cov khoom sib cais thiab cov khoom ntiag tug- daim ntawv lo.
Zoo & Kev Tshuaj Xyuas
Kev tswj kom zoo yuav tsum them rau ob qho tib si kho qhov muag kev ua tau zoo thiab kev siv tshuab ua tau zoo. Txhua pawg ntau lawm tuaj yeem raug tshuaj xyuas raws li kev pom zoo, nrog rau cov khoom tseem ceeb tshuaj xyuas suav nrog:
Visual thiab dimensional soj ntsuam ntawm vaj tse thiab interfaces
LC / ST ferrule thiab lub tes tsho kev sib raug zoo tshuaj xyuas
Insertion poob ntsuas
Rov qab poob ntsuas rau cov kev teeb tsa singlemode
Connector interchangeability thiab mating pov thawj
Mating durability kuaj
Tsev thiab mounting qauv tshuaj xyuas
Marking, kom muaj nuj nqis thiab ntim cov ntaub ntawv pov thawj
Cov ntaub ntawv soj ntsuam tuaj yeem muab tau raws li qhov yuav tsum tau ua.
FAQ
Q: Puas yog lub adapter xav tau cov cuab yeej tshwj xeeb rau kev teeb tsa?
A: Tsis muaj cov cuab yeej kho qhov muag tshwj xeeb yog ib txwm xav tau. Lub adapter yog tsim los rau cov neeg kho tshuab connector mating thiab vaj huam sib luag installation. Yog hais tias ib tug customized mounting qauv yog muab, installation yuav tsum ua raws li cov khoom siv los yog vaj huam sib luag tsim.
Q: Lub adapter puas tuaj yeem siv rau ob qho tib si sab hauv tsev thiab sab nraum zoov fiber ntau?
A: Nws yog tsim los tiv thaiv sab hauv tsev, khoom siv-chav, khib, thaj- vaj huam sib luag, thiab kev teeb tsa hauv txee. Rau kev xa tawm sab nraum zoov, lub adapter yuav tsum tau muab tso rau hauv ib qho chaw tiv thaiv huab cua uas tsim nyog es tsis txhob cuam tshuam ncaj qha rau nag, plua plav, lossis lub sijhawm ntev ib puag ncig.
Q: Kuv puas tuaj yeem xaj cov qauv ua ntej kev yuav khoom ntau?
A: Yog. Cov qauv tuaj yeem muab rau cov khoom sib txuas, qhov ntev, txuas, thiab kho qhov muag - kev ntsuas kev ua tau zoo ua ntej ntim khoom. Cov qauv xav tau thiab cov nqi them tuaj yeem lees paub raws li qhov xav tau kev teeb tsa thiab kom muaj nuj nqis.
Q: Koj puas tuaj yeem muab cov khoom hloov pauv raws li kev teeb tsa -system ntu naj npawb?
A: Ib tus lej siv tau tuaj yeem siv rau kev sib piv cov cuab yeej, tab sis kev tsim khoom yuav tsum yog raws li qhov tseeb qhov ntev thiab kev ua haujlwm tau zoo dua li tus lej ib leeg. Cov neeg siv khoom tuaj yeem muab cov qauv, kos duab, lossis cov ntaub ntawv rau kev tshuaj xyuas kev sib raug zoo.
Q: Yuav ua li cas yog fiber optic adapters ntim rau thoob ntiaj teb kev xa khoom?
A: Adapters feem ntau tiv thaiv kev sib kis thiab kev puas tsuaj rau lub cev thaum tuav thiab kev thauj mus los, nrog cov ntim ntim thiab tsim cov thawv sab nrauv xaiv raws li kev txiav txim kom muaj nuj nqis. Kev ntim khoom ntawm tus kheej lossis customized tuaj yeem npaj rau OEM thiab tus neeg xa khoom xaj.
Q: Lub sij hawm xa tuaj raws sij hawm yog dab tsi?
A: Rau cov qauv coj mus muag kev txiav txim, lub sijhawm ua haujlwm raug coj mus kuaj yog 7-14 hnub, ua raws li kwv yees li 20-30 hnub ntawm lub sijhawm xa khoom, nyob ntawm qhov chaw thiab txoj kev xa khoom. Customized lossis loj - ntim xaj yuav tsum tau teem caij sib cais tom qab kev pom zoo tshwj xeeb.
Q: Cov nqe lus them nqi dab tsi muaj rau kev txiav txim?
A: Cov kev them nyiaj feem ntau suav nrog T / T, L / C, PayPal, thiab credit card. Lwm qhov kev npaj them nqi tuaj yeem sib tham rau kev txiav txim kom tsim nyog, nrog rau cov lus kawg tau lees paub hauv cov lus hais lossis daim ntawv cog lus muag.
