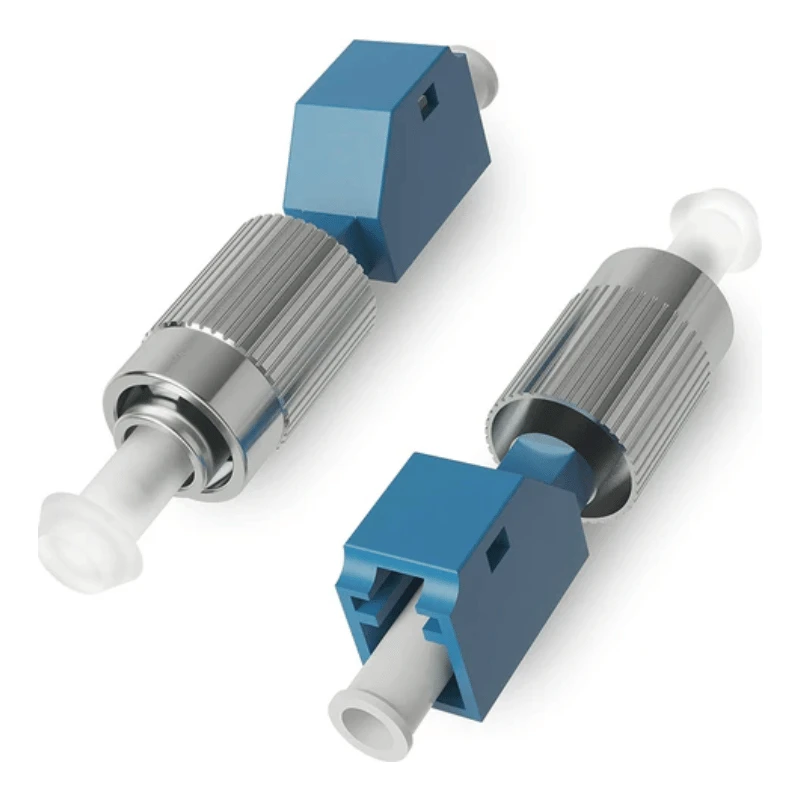

LC rau FC Fiber Optic Adapters yog hybrid poj niam-rau- poj niam adapters tsim los txuas LC- txiav thiab FC- txiav cov fiber ntau optic yam tsis muaj re- txiav cov fiber ntau. Tus qauv kev teeb tsa yog LC / UPC rau FC / UPC, simplex, singlemode OS2 9/125 μm, nrog rau qhov tseeb zirconia ceramic alignment tes tsho. Sib txawv connector polish hom, fiber ntau hom, cov ntaub ntawv vaj tse, thiab mounting configurations yuav raug teev rau peb tes num yuav tsum tau.
Adapter Specifications
|
Parameter |
Txheem Specification |
||
|
Hom Adapter |
LC rau FC Hybrid Adapter |
||
|
Connector Configuration |
LC/UPC rau FC/UPC |
||
|
Poj niam txiv neej |
Poj niam-rau- Poj niam |
||
|
Channel |
Simplex |
||
|
Fiber hom |
Singlemode OS 2 9/125 μm |
||
|
Alignment lub tes tsho |
Precision Zirconia Ceramic |
||
|
Hom Insertion Poob |
Tsawg dua lossis sib npaug li 0.3 dB |
||
|
Rov Los Los |
Ntau tshaj lossis sib npaug rau 50 dB, UPC |
||
|
Durability |
Ntau tshaj los yog sib npaug rau 500 mating cycles |
||
|
Ua haujlwm kub |
-25℃rau +70 degree |
||
|
Cia Kub |
-40℃rau +85 degree |
||
|
Mounting |
Vaj huam sib luag Mount |
||
|
Tsev |
Engineering yas los yog hlau |
||
|
Cov qauv siv tau |
IEC 61754-20 / IEC 61754-13 interface yuav tsum tau; RoHS |
||
LC interface ua raws li qhov yuav tsum tau muaj ntawm LC connector tsev neeg, thaum FC sab siv tus qauv 2.5 hli ferrule interface thiab ntsia hlau -coupling tsim.
Connector Compatibility
Lub adapter yog tsim los rau LC ncaj qha - mus rau -FC kev sib txuas, ua rau nws muaj txiaj ntsig zoo rau qhov khoom siv, thaj vaj huam sib luag, lossis cov khoom siv fiber ntau uas twb muaj lawm siv ntau lub platform txuas.
LC sab:Tau tshaj tus qauv LC connectors; UPC thiab APC configurations tau teev tseg.
FC sab:Tau tshaj tus qauv FC connectors siv cov PC / UPC los yog APC configuration.
Fiber ntau hom:siSglemode OS2 yog tus qauv teeb tsa; multimode versions xws li OM3 thiab OM4 tuaj yeem muab tau thaum lub adapter tsim thiab lub tes tsho sib dhos tau sib phim raws li.
Polish kev sib tw:Connector polish hom yuav tsum tau xaiv raws li cov mating Cheebtsam. LC thiab FC interfaces muaj cais IEC qhov tshwj xeeb.
Rau cov sib txuas sib txuas sib txuas, lub hybrid adapter tshem tawm qhov xav tau los hloov lwm yam kev pabcuam cov hlua khi lossis rov- txiav tawm cov fiber ntau.
Adapter Structure
Lub adapter muaj ob lub connector receptacles, ib tug precision alignment tes tsho, thiab ib tug sab nraud vaj tse nrog lub vaj huam sib luag yuav tsum tau -retention structure.
Lub tes tsho zirconia ceramic tuav ferrule kev sib raug zoo thaum mating thiab unmating, pab tswj optical coupling poob. Sab LC siv lub compact latch- hom interface, thaum FC sab haum rau cov xov txuas txuas nrog cov yam ntxwv ntawm FC connectors.
Cov kev xaiv vaj tsev muaj xws li siab -lub zog engineering yas lossis hlau, nyob ntawm seb cov khoom yuav tsum tau ua thiab kev tsim vaj huam sib luag. Cov kaus mom plua plav, cov qauv kaw, cov qauv flange sib txawv, thiab cov neeg siv khoom- tshwj xeeb mounting nta kuj tuaj yeem teeb tsa.
Daim ntawv thov
Telecom thiab ODF Systems
Siv los txuas LC thiab FC thaj cords nyob rau hauv optical faib thav duab, fiber ntau panels, thiab cov khoom siv network.
Data Center thiab Enterprise Fiber Networks
Tsim nyog rau cov cuab yeej tsiv teb tsaws chaw lossis cov qub txeeg qub teg- mus rau -txoj kev tshiab uas LC thiab FC interfaces yuav tsum tau ua ke.
FTTx Distribution Equipment
Nws tuaj yeem muab tso rau hauv cov thawv ntim khoom fiber ntau, cov txee, cov khoom siv txiav tawm, thiab lwm yam kev nkag mus rau - cov khoom siv hauv lub network uas yuav tsum muaj cov khoom sib xyaw ua ke.
Fiber Test thiab Measurement Equipment
Muab ib qho kev hloov pauv LC - rau -FC interface rau cov cuab yeej ntsuas qhov muag thiab qhov chaw kuaj lossis cov khoom kuaj vaj huam sib luag.
OEM Fiber Panels thiab Sib dhos
Haum rau vaj huam sib luag manufacturers, enclosure builders, thiab system integrators xav tau ib tug hybrid adapter configuration.
Customization / OEM
Kev sib txuas ntawm Connector:Lc-fc thiab lwm yam hybrid configurations.
Polish:Upc lossis apc raws li mating connector configuration.
Fiber hom:Os2 singlemode thiab xaiv multimode configurations.
Lub tes tsho:Zirconia ceramic; lwm cov ntaub ntawv lub tes tsho tuaj yeem raug soj ntsuam rau cov kev siv tshwj xeeb.
Vaj tse: yas los yog hlau tsim.
Mounting:Standard vaj huam sib luag mounting, flanged / flangeless qauv, clips, los yog cov neeg siv khoom - tshwj xeeb mounting geometry.
Kev tiv thaiv:Plua plav kaus mom los yog shuttered designs.
Kev txheeb xyuas:Lub tsev xim, logo, chaw nres nkoj naj npawb, ib feem naj npawb, thiab barcode labeling.
Ntim:Feem ntau, ib lub hnab ntim khoom, lossis cov neeg siv khoom- ntim ntim.
Zoo & Kev Tshuaj Xyuas
Kev tswj kom zoo yuav tsum npog ob qho tib si kho qhov muag kev ua tau zoo thiab kev ntseeg tau ntawm txhua yam. Tej yam tshuaj ntsuam xyuas muaj xws li:
Insertion poob thiab rov poob kev sim rau qhov teev cov connector thiab polish configuration.
Dimensional soj ntsuam ntawm adapter interfaces, mounting nta, thiab alignment Cheebtsam.
Lub tes tsho thiab ferrule kev sib raug zoo txheeb xyuas kom muaj kev sib raug zoo dua.
Kev sib tw- kev ntsuas lub voj voog kom paub tseeb tias cov khoom siv ua haujlwm ntev.
Kev tshuaj xyuas qhov pom ntawm vaj tse tsis xws luag, lub tes tsho mob, kis kab mob, thiab kev puas tsuaj ntawm cov khoom sib txuas.
Kev ntsuas kub thiab ib puag ncig thaum xav tau los ntawm qhov project specification.
Cov ntaub ntawv thiab cov ntaub ntawv ua raws cai, suav nrog RoHS-cov kev xav tau ntsig txog thaum tau teev tseg.
Kev soj ntsuam cov qauv thiab cov ntawv xeem tuaj yeem ua raws li tus neeg siv khoom kos duab, kev yuav khoom tshwj xeeb, lossis siv tau fiber ntau- cov qauv kho qhov muag.
FAQ
Q: Koj puas tuaj yeem muab cov qauv ua ntej kev txiav txim ntau?
A: Yog. Cov qauv tuaj yeem muab rau cov specification, connector compatibility, thiab kev ntsuam xyuas los ua ke ua ntej yuav ntau. Tus qauv kom muaj nuj nqis thiab cov nqi coj mus kuaj yuav raug lees paub raws li qhov kev thov teeb tsa.
Q: MOQ rau LC rau FC Fiber Optic Adapters yog dab tsi?
A: Rau cov qauv kev teeb tsa, MOQ feem ntau yog 100 daim. OEM configurations, cov ntaub ntawv tshwj xeeb, los yog customized ntim yuav xav tau ib tug sib txawv MOQ, uas yuav tsum tau paub tseeb hais tias ua ntej hais.
Q: Dab tsi yog lub sij hawm txhuas txhuas rau kev txiav txim ntau?
A: Lub sijhawm ua haujlwm yog 7-14 hnub, nyob ntawm qhov kev txiav txim kom muaj nuj nqis thiab teeb tsa. Shipping lub sij hawm yog ib txwm 20-30 hnub, nrog rau lub sij hawm zaum kawg tau lees paub raws li qhov chaw thiab txoj kev xa khoom.
Q: Koj txais txoj kev them nyiaj dab tsi?
A: Peb feem ntau lees txais T / T, L / C, PayPal, thiab credit card. Lwm cov nqe lus them nqi tuaj yeem tham txog rau kev txiav txim tsim nyog lossis cov kev xav tau tshwj xeeb.
Q: Cov txheej txheem shipping twg muaj?
A: Kev txiav txim tuaj yeem xa los ntawm kev nthuav qhia, huab cua freight, lossis hiav txwv freight, nyob ntawm seb muaj pes tsawg, xa khoom, thiab qhov chaw. DDP, DAP, thiab EXW cov ntsiab lus kuj tuaj yeem npaj raws li qhov kev txiav txim.
Q: Koj puas tuaj yeem muab cov ntaub ntawv soj ntsuam nrog kev txiav txim?
A: Yog. Kev tshuaj xyuas cov ntaub ntawv tuaj yeem muab tau raws li kev pom zoo kev txiav txim. Cov ntaub ntawv ib txwm muaj xws li kev tso qhov poob, rov qab poob, kev tshuaj xyuas qhov ntev, thiab cov txiaj ntsig kev soj ntsuam pom.
Q: Kuv yuav tsum qhia tus adapter li cas thaum thov cov lus hais?
A: Muab qhov yuav tsum tau LC / FC connector ua ke, UPC los yog APC polish, simplex los yog lwm yam configuration, fiber ntau hom, vaj tse hom, mounting yuav tsum, kom muaj nuj nqis, thiab ntim yuav tsum tau. Cov duab kos lossis cov qauv siv tau raug pom zoo rau cov qauv tsim kho.
