MPO / MTP Adapter Cable
DIMI Fiber manufactures MPO / MTP adapter cables rau siab - fiber ntau sib txuas ntawm MPO / MTP interfaces thiab teev cov khoom siv kho qhov muag lossis cov tshuab xa khoom. Kev teeb tsa muaj rau OS2, OM3, OM4, thiab OM5 fiber ntau, nrog 8, 12, 16, thiab 24 fibers, pinned lossis tsis-pinned connectors, Hom A / B / C polarity, qauv lossis kev cai ntev, thiab PVC, LSZH, lossis OFNP tsho.
-

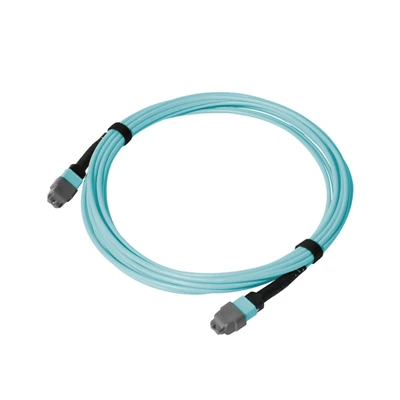

![MPO Polarity Hloov Cable]()
MPO Polarity Hloov CableMPO Polarity Conversion Cable yog lub Hoobkas- txiav fiber ntau sib dhos tsim los kho fiber ntau- txoj hauj lwm lossis Tx/Rx polarity tsis sib haum nyob rau hauv siab - ntom MPO / MTP cabling... -
![MPO Poj Niam Rau Txiv Neej Adapter Cable]()
MPO Poj Niam Rau Txiv Neej Adapter CableMPO Poj Niam Rau Txiv Neej Adapter Cable yog lub Hoobkas- txiav ntau- fiber ntau sib dhos nrog MPO poj niam connector ntawm ib kawg thiab MPO txiv neej connector ntawm lwm yam. Tus poj niam kawg... -

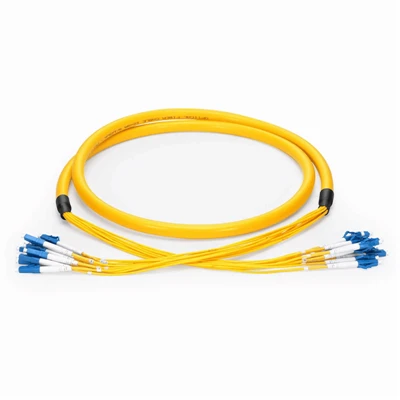

![MTP rau LC Adapter Cable]()
MTP rau LC Adapter CableMTP Rau LC Adapter Cable yog lub Hoobkas - txiav fiber ntau optic sib dhos uas txuas lub siab - ceev MTP / MPO interface rau ntau lub LC duplex interfaces. Nws yog tsim los rau kev tsim cabling... -
![MPO rau SC Adapter Cable]()
MPO rau SC Adapter CableMPO rau SC Adapter Cable yog lub Hoobkas - txiav tawm fiber ntau optic fanout sib dhos uas txuas lub siab - ntom MPO / MTP® interface rau ib tus neeg SC optical interfaces. Kev sib dhos tuaj yeem... -
![MPO rau LC Adapter Cable]()
MPO rau LC Adapter CableMPO rau LC Adapter Cable yog lub Hoobkas - txiav ntau- fiber ntau cable sib dhos uas txuas lub siab - ceev MPO / MTP interface rau ib tus neeg LC duplex ports. Nws yog siv los hloov pauv ntawm...
MPO / MTP Adapter Cable Hom
DIMI Fiber muab MPO / MTP adapter cable sib dhos rau kev sib txuas sib txuas, fiber ntau configurations, thiab polarity yuav tsum tau.
MPO rau MPO Adapter Cable
Ua ntej- txiav MPO cable sib dhos rau kev sib txuas ncaj qha ntawm MPO interfaces sib xws. Muaj nrog cov suav fiber ntau, pin configurations, polarity, thiab cable lengths.
MTP rau MTP Adapter Cable
MTP-raws li multifiber sib dhos rau siab- kev sib txuas ceev ntawm MTP interfaces sib xws. Pinned los yog tsis yog -pinned configurations raug xaiv raws li mating connectors.
MPO / MTP rau LC Adapter Cable
Hloov lub multifiber MPO / MTP interface rau LC kev sib txuas rau cov khoom siv, kev faib khoom, thiab kev teeb tsa kev sib cais. Fiber suav, polarity, connector hom, thiab cable ntev yog configured raws li daim ntawv thov.
MPO / MTP rau SC Adapter Cable
Muab MPO/MTP-rau-SC interface configuration rau cov tshuab uas xav tau kev sib txuas ntau fiber ntau ntawm ib sab thiab SC txuas rau lwm qhov.
MPO Polarity Hloov Cable
Tsim los rau kev teev tseg MPO fiber ntau daim ntawv qhia thiab polarity hloov dua siab tshiab. Hom A, Hom B, lossis Hom C teeb tsa muaj nyob raws li qhov txuas txuas uas twb muaj lawm.
Kev cai MPO / MTP Adapter Cable
Kev cai sib dhos tuaj yeem tsim nrog cov hom fiber ntau, suav fiber ntau, kev sib txuas ua ke, tus pin configuration, polarity, fiber ntau daim ntawv qhia, cable ntev, thiab lub tsho. Cov kab hluav taws xob uas twb muaj lawm, kos duab, BOMs, lossis tus lej txuas txuas tuaj yeem muab rau kev txheeb xyuas qhov tseeb.
MPO / MTP Adapter Cable Configurations
Kev sib dhos cable tuaj yeem raug teev raws li qhov txuas txuas, kev teeb tsa fiber ntau, thiab cov kev xav tau ntawm kev teeb tsa.
|
Parameter |
Muaj Kev Xaiv |
|
Txuas |
MPO / MTP |
|
Connector Pin |
Pinned / Tsis yog -pinned |
|
Fiber suav |
8/12/16/24 fibers |
|
Hom Fiber |
OS 2/OM3/OM4/OM5 |
|
Polarity |
Hom A / Hom B / Hom C |
|
Cable Ntev |
Standard lengths / Custom lengths |
|
Jacket |
PVC / LSZH / OFNP |
|
Ua haujlwm kub |
-20℃rau +70 degree |
|
Ua raws |
IEC 61754-7 / TIA-604-5 / Telcordia GR-1435-CORE, qhov tsim nyog |
|
Cov ntaub ntawv xav tau |
RoHS / REACH; siv tau cov nplaim hluav taws- cov kev cai retardant |
Cov lus qhia tshwj xeeb tau lees paub tiv thaiv cov khoom sib txuas xaiv, fiber ntau, thiab kev teeb tsa cable ua ntej tsim khoom.
MPO / MTP Interface Compatibility
MPO / MTP adapter cables yog configured kom phim cov connector interface, pin configuration, fiber ntau suav, fiber ntau hom, polarity, thiab fiber ntau daim ntawv qhia ntawm cov khoom txuas los yog cable uas twb muaj lawm.
Tej configurations muaj xws li:
MPO / MTP rau MPO / MTP:Txuas tshaj MPO / MTP interfaces ntawm fiber ntau cassettes, lub cev cables, thaj vaj huam sib luag, transceivers, thiab lwm yam khoom siv kho qhov muag.
MPO/MTP rau LC:Txuas lub multifiber MPO / MTP interface nrog cov khoom siv lossis cov khoom siv faib khoom siv LC txuas.
MPO/MTP rau SC:Txuas MPO/MTP interface nrog SC -cov khoom siv fiber ntau lossis cov khoom faib.
Pinned rau Tsis yog -Pinned:Lub connector pin configuration yog xaiv raws li mating connector.
Hom A / B / C Polarity:Polarity thiab fiber ntau daim ntawv qhia tau teeb tsa raws li qhov xav tau fiber ntau - mus rau - fiber ntau.
OS 2/OM3/OM4/OM5:Fiber hom raug xaiv kom phim cov khoom siv kho qhov muag uas twb muaj lawm thiab cov khoom siv txuas nrog.
MPO / MTP adapter cables xav tau qhov tseeb mating connector configuration. Pinned thiab tsis yog -pinned versions raug xaiv raws li tus connector ntawm mating sab.
Pinned / Txiv neej:Incorporates alignment pins for positioning against a compatible non-pinned connector.
Tsis yog-pinned / Poj niam:Siv cov mating connector alignment pins rau connector alignment.
MPO / MTP interface:Multifiber connector configuration rau siab -kev sib txuas ceev.
MPO/MTP rau LC lossis SC:Muaj rau cov kev hloov pauv hloov pauv hloov pauv thiab kev teeb tsa breakout.
Rau kev hloov pauv lossis kab ke- sib xws cov xaj, tus lej txuas uas twb muaj lawm lossis kab qauv tuaj yeem siv los txheeb xyuas qhov xav tau tus pin configuration.
Polarity thiab Fiber Mapping
Polarity txiav txim seb tus neeg fibers tau teeb tsa li cas ntawm ob qhov kawg ntawm MPO / MTP los ua ke. Cov polarity xaiv yuav tsum phim cov khoom siv thiab txuas architecture.
|
Polarity |
Fiber Mapping |
|
Hom A |
Ncaj - los ntawm daim ntawv qhia |
|
Hom B |
Rov qab daim ntawv qhia |
|
Hom C |
Pair -wise reversed mapping |
DIMI Fiber tuaj yeem tsim cov khoom sib dhos raws li cov polarity thiab fiber ntau daim ntawv thov. Rau kev teeb tsa tsis meej, muab cov kab hluav taws xob uas twb muaj lawm, kev kos duab, BOM, lossis cov ntaub ntawv fiber ntau rau kev txheeb xyuas ua ntej tsim khoom.
Daim ntawv thov
MPO / MTP adapter cables yog siv rau hauv:
Data center fiber infrastructure
High -ntaus fiber ntau faib tshuab
Telecom infrastructure
Enterprise network khoom
High -kev ua tau zoo ntawm kev suav ib puag ncig
Network expansion thiab reconfiguration
Fiber cable hloov thiab tu
Kev tsim nyog nyob ntawm qhov ua tiav optical channel, suav nrog hom fiber ntau, transceiver, polarity, connector configuration, thiab channel poob.
DIMI Fiber txheeb xyuas MPO / MTP adapter cables tiv thaiv cov khoom sib txuas, fiber ntau, thiab polarity configuration ua ntej khoom xa tuaj.
Kev tswj kom zoo tuaj yeem suav nrog:
Connector Geometry:3D interferometric soj ntsuam ntawm lub vojvoog ntawm curvature, apex offset, thiab fiber ntau protrusion.
Xaus-Lub ntsej muag mob:Kev soj ntsuam ntawm cov microscopic ntawm cov connector kawg ntsej muag raws li siv tau IEC 61300-3-35 cov qauv.
Kev kuaj pom qhov muag:Insertion poob, rov qab poob, thiab kev ntsuas qhov muag txuas ntxiv raws li qhov teev tseg.
Fiber Mapping:Kev txheeb xyuas ntawm fiber ntau-rau- fiber ntau txuas ntxiv thiab polarity yog qhov xav tau.
Cov ntaub ntawv xeem:Cov ntaub ntawv kho qhov muag rau tus kheej tuaj yeem muab nrog rau qhov kev txiav txim uas tau teev tseg.
Kev ntsuam xyuas yuav tsum tau lees paub raws li cov kev xaiv fiber ntau, kev teeb tsa txuas, thiab polarity es tsis yog siv ib qho kev qhia tshwj xeeb thoob plaws txhua MPO / MTP adapter cables.
DIMI Fiber txhawb kev cai adapter cable ntau lawm rau OEM tej yaam num, network deployment, thiab hloov yuav tsum tau.
Customization tuaj yeem suav nrog:
- Fiber ntau: OS2 / OM3 / OM4 / OM5
- Fiber ntau: 8/12/16/24
- MPO los yog MTP connector
- Pinned los yog tsis -pinned configuration
- Hom A, B, lossis C polarity
- Daim ntawv qhia fiber ntau
- MPO/MTP rau LC lossis SC configurations
- Cable ntev
- PVC, LSZH, lossis OFNP lub tsho
- Heavy- lub luag haujlwm lossis cov cuab yeej siv phom sij yog qhov tsim nyog
- Private labeling
- Kev cai barcoding
- Kitted los yog bulk ntim
Cov neeg siv khoom tuaj yeem muab cov duab kos, cable uas twb muaj lawm, BOM, txuas tus lej, cov khoom siv sib txuas, lossis cov qauv raws li kev siv ntau lawm.
