MPO / MTP Multimode Fiber Cable
MPO/MTP multimode fiber ntau cables rau luv- thiab nruab nrab- ncav cuag, siab- qhov muag pom kev sib txuas hauv cov chaw khaws ntaub ntawv thiab siab - ceev network systems. Muaj nrog OM3, OM4, thiab OM5 50/125 μm multimode fiber ntau, Base-8 lossis Base-12 configurations, ntau fiber ntau suav, connector genders, polarity hom, thiab optical poob xaiv.
Cov kev teeb tsa cable raug xaiv raws li qhov sib txuas ntawm transceiver, kis ceev, txuas nrug, qib fiber ntau, suav fiber ntau, polarity, thiab xav tau kev ua haujlwm kho qhov muag.
-
![High Density MPO Multimode Fiber Cable]()
High Density MPO Multimode Fiber CableLub High Density MPO Multimode Fiber Cable yog ib qho ua ntej- txiav tawm ntau- fiber ntau cable los ua ke tsim los sib sau ua ke ntau ntau hom kev kho qhov muag los ntawm MPO / MTP- sib txuas sib... -
![MPO rau LC Multimode Fiber Cable]()
MPO rau LC Multimode Fiber CableMPO rau LC Multimode Fiber Cable yog ib qho ua ntej- txiav tawm cable uas txuas rau ntau- fiber ntau MPO / MTP interface nrog ib tus neeg LC duplex kev sib txuas hauv multimode fiber ntau network.... -
![MPO Multimode Lub cev Cable]()
MPO Multimode Lub cev CableMPO Multimode Trunk Cable yog lub siab -ntaus fiber ntau sib dhos tsim los rau kev tsim cabling hauv cov ntaub ntawv chaw, chav tsev neeg rau zaub mov, thiab siab - ceev network ib puag ncig. -
![OM5 MPO Multimode Fiber Cable]()
OM5 MPO Multimode Fiber CableOM5 MPO Multimode Fiber Cable yog ib qho ua ntej- txiav siab siab- ntom fiber ntau sib dhos siv OM5 wideband multimode fiber (WBMMF) thiab MPO connectors. Nws yog tsim los rau luv luv - ncav cuag,... -
![OM4 MPO Multimode Fiber Cable]()
OM4 MPO Multimode Fiber CableOM4 MPO Multimode Fiber Cable yog lub Hoobkas- txiav tawm, siab- ntom fiber ntau sib dhos rau cov qauv cabling hauv cov chaw zov me nyuam, kev lag luam tes hauj lwm, thiab luv luv- ncav cuag siab... -

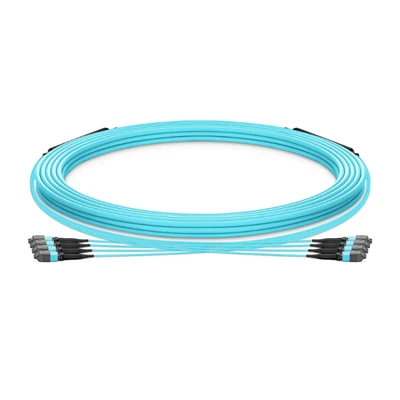

![OM3 MPO Multimode Fiber Cable]()
OM3 MPO Multimode Fiber CableLub OM3 MPO Multimode Fiber Cable yog lub Hoobkas- txiav tawm multimode fiber ntau los ua ke nrog OM3 optical fiber thiab MPO / MTP multi- fiber ntau connectors.
MPO / MTP Multimode Fiber Cable Specifications
|
Parameter |
Muaj Kev Xaiv |
|
Hom Fiber |
OM3 / OM4 / OM5 |
|
Fiber Loj |
50/125 μm |
|
Lub wavelength |
850 / 1300 nm |
|
Txuas |
MPO / MTP |
|
Poj niam txiv neej |
Txiv neej / Poj niam |
|
Polarity |
Hom A / Hom B / Hom C |
|
Fiber suav |
8 / 12 / 24 / 48 / 72 / 144 |
|
Hom kab |
Hloov / Micro{0}} faib / Ribbon |
|
Jacket |
LSZH / PVC / OFNP |
|
Ua haujlwm kub |
-20℃rau +70 degree |
|
Kev sim |
IL / RL / 3D Interferometry / Xaus -Kev Tshuaj Xyuas ntsej muag |
|
Kev xaiv ua raws cai |
RoHS / REACH / CE / UL / CPR, qhov muaj feem xyuam |
Qhov tseeb muaj teeb tsa thiab cov cim kev ua raws cai nyob ntawm qhov kev xaiv cable tsim thiab qhov yuav tsum tau ua.
OM3, OM4 & OM5 Multimode Fiber Options
Peb MPO/MTP multimode fiber ntau cables siv 50/125 μm multimode fiber ntau thiab muaj nyob rau hauv OM3, OM4, thiab OM5 qib sib txawv siab - ceev network architectures.
|
Hom Fiber |
Kev siv yam |
Kev txiav txim siab tseem ceeb |
|
OM 3 |
10G/40G/100G luv- mus txog qhov txuas |
Tus nqi -kev xaiv zoo multimode rau tsim cov ntaub ntawv chaw network |
|
OM 4 |
40G/100G thiab siab dua - ceev cov ntaub ntawv chaw txuas |
Siab bandwidth thiab kev txhawb nqa ntev dua li OM3 |
|
OM 5 |
High -Speed multimode thiab SWDM daim ntawv thov |
Wideband multimode fiber ntau rau ntau -wavelength kis tau tus mob |
Qhov kev sib kis qhov tseeb nyob ntawm qhov transceiver, tus nqi sib kis, kev siv nyiaj siv kho qhov muag, thiab cov qauv siv network. Peb tuaj yeem tshuaj xyuas qhov ua tiav kev teeb tsa ua ntej ntau lawm.
MPO/MTP multimode cov rooj sib txoos tuaj yeem teeb tsa rau qhov sib txawv siab -cov qauv fiber ntau, suav nrog Base-8 thiab Base-12 systems.
Base-8:8- fiber ntau kis tau tus mob architecture feem ntau siv thaum uas tig mus - kev siv optics thiab high-speed data center connectivity.
Base-12:12-fiber configuration dav siv nyob rau hauv cov qauv cabling thiab high-density backbone systems.
Peb muab MPO / MTP cov rooj sib tham nrog cov kev sib txuas sib txawv kom haum raws li qhov yuav tsum tau ua ntawm qhov txuas tiav.
Connector Poj Niam Txiv Neej
Txiv neej:Connector nrog coj tus pins
Poj niam:Connector tsis muaj tus pins qhia
Tus poj niam uas xav tau yog nyob ntawm cov khoom siv mating, cassette, adapter, lub cev, lossis patching architecture.
Polarity
Muaj polarity configurations muaj xws li:
Hom A:Ncaj nraim - los ntawm fiber ntau daim ntawv qhia
Hom B:Reversed fiber ntau daim ntawv qhia
Hom C:Pair -flip fiber ntau daim ntawv qhia
Polarity yuav tsum tau teev ua ke nrog cov transceiver thiab mating Cheebtsam kom paub meej tias kev xa tawm / tau txais fiber ntau routing.
Kev Tsim Kho Cable & Jacket Options
MPO/MTP multimode sib dhos muaj nyob rau hauv kev tsim cov kab sib txawv thiab cov kev xaiv tsho rau siab -cov ntaub ntawv ceev ceev thiab kev teeb tsa.
Round Kab
General -Lub hom phiaj kev tsim kho rau lub cev thiab daim ntawv thov patching
Micro{0}}Kev faib tawm Cable
Cov kab hluav taws xob me me rau siab -nruab qhov ceev thiab qhov chaw- txwv kev teeb tsa
Ribbon Cable
Ntau -fiber ribbon siv rau siab - suav cov rooj sib txoos
LSZH
Tsawg- pa luam yeeb, halogen- lub tsho dawb xaiv rau kev teeb tsa nrog cov kev cai tshwj xeeb
PVC
Standard tsho xaiv rau siv nyob rau hauv tsev installation
OFNP
Plenum- ntsuas kev tsim kho rau kev teeb tsa uas xav tau OFNP cable kev ua haujlwm
Cable ntev, fiber ntau suav, kab inch, lub tsho hom, thiab lwm yam kev tsim kho cov ntsiab lus raug xaiv raws li qhov yuav tsum tau ua MPO / MTP los ua ke configuration.
Txheem - Poob & Tsawg- Kev xaiv poob
MPO/MTP multimode fiber ntau cables muaj nyob rau hauv tus qauv - poob thiab qis - poob versions, tso cai rau sib txawv connector poob yuav tsum tau sib phim rau optical link pob nyiaj siv.
|
Kev teeb tsa |
Kev siv yam |
|
Txheem -Poob |
General data center thiab high -density multimode fiber links |
|
Tsawg- poob |
Siab -Txoj kev sib txuas ceev uas qhov txuas txuas txuas tsis tau muaj kev cuam tshuam nruj dua rau tag nrho cov peev nyiaj txuas |
Optical parameters: Insertion Poob (IL), Rov Los Poob (RL), fiber ntau attenuation, thiab connector kawg -face geometry.
Tsawg-cov kev sib dhos poob muaj nyob nrog xaiv MPO/MTP connector configurations thiab fiber ntau hom. Cov kev txwv IL / RL tau lees paub raws li kev teeb tsa cable thiab qhov project yuav tsum tau ua.
MPO/MTP multimode fiber ntau cables feem ntau yog siv rau siab - ntom ntom - ncav cuag qhov muag txuas, suav nrog:
- Enterprise Data Centers
- Cloud computing chaw
- High -kev ua tau zoo suav (HPC) ib puag ncig
- Server thiab hloov kev sib txuas
- High -ntaus qauv kab
- Data center backbone thiab kev sib txuas
Kev teeb tsa cable raug xaiv raws li qhov kho qhov muag modules, khib architecture, suav fiber ntau, thiab qhov yuav tsum tau sib kis.
DIMI Fiber manufactures MPO / MTP multimode fiber ntau cables thiab fiber optic cable sib dhos los ntawm kev sib txuas lus sib dhos, precision fiber ntau txiav, cable ua, kuaj qhov muag, thiab kev soj ntsuam zaum kawg. Peb lub peev xwm tsim khoom txhawb nqa tus qauv MPO / MTP kev teeb tsa nrog rau qhov project- tshwj xeeb multimode fiber ntau cable sib dhos.
- Automated thiab precision-pab fiber ntau npaj, cleaving, polishing, thiab connector los ua ke
- Tswj epoxy curing rau connector termination
- Cable jacketing thiab cable siv rau txawv installation yuav tsum
- Kev txhawb nqa ntau lawm rau ntau- fiber ntau sib dhos thiab sib txawv MPO/MTP configurations
Optical Inspection & Testing
Txhua qhov kev sib dhos ua tiav MPO / MTP tuaj yeem kuaj tau raws li kev txiav txim siab ua ntej xa khoom xa tuaj.
|
Kuaj / Tshuaj xyuas |
Lub hom phiaj |
Cov ntaub ntawv pov thawj |
|
Insertion Loss Testing |
Xyuas kom pom qhov poob ntawm qhov txuas txuas |
IL test result |
|
Rov Los Los Xeem |
Txheeb xyuas qhov ua tau zoo ntawm qhov pom kev |
RL test result |
|
3D Interferometry |
Txheeb xyuas MPO/MTP kawg -ntsej muag geometry |
Cov ntaub ntawv tshawb xyuas Geometry |
|
Xaus -Kev Tshawb Fawb Lub ntsej muag |
Tshawb xyuas cov kab mob, khawb, chips, thiab lwm yam tsis xws luag |
Kev tshuaj ntsuam xyuas |
|
Polarity / Fiber Mapping |
Txheeb xyuas qhov sib npaug ntawm fiber ntau thiab polarity |
Fiber daim ntawv qhia |
|
Kev soj ntsuam zaum kawg QC |
Paub meej tias cable configuration tiv thaiv qhov kev txiav txim |
Cov ntaub ntawv soj ntsuam zaum kawg |
Cov ntaub ntawv xeem thiab cov ntaub ntawv soj ntsuam tuaj yeem muab tau raws li qhov yuav tsum tau ua.
Kev cai MPO / MTP Multimode Fiber Cable Manufacturing
Peb tsim MPO / MTP multimode cable sib dhos raws li cov duab kos, BOMs, cov qauv, lossis cov kev qhia tshwj xeeb.
Customization tuaj yeem suav nrog:
OM3 / OM4 / OM5 fiber ntau
8-144 fiber ntau configurations
Cable ntev
Connector hom thiab poj niam txiv neej
Hom A / B / C polarity
Cable tsim thiab cov khoom siv lub tsho
Rub -cov khoom siv qhov muag
Jacket xim
Daim ntawv lo thiab barcode
Cov ntawv ceeb toom ntawm tus kheej
Rau qhov kev txiav txim, cov neeg siv khoom tuaj yeem muab cov qauv transceiver, cov lus qhia cable uas twb muaj lawm, kev kos duab, lossis BOM rau kev tshuaj xyuas ua ntej tsim khoom.
