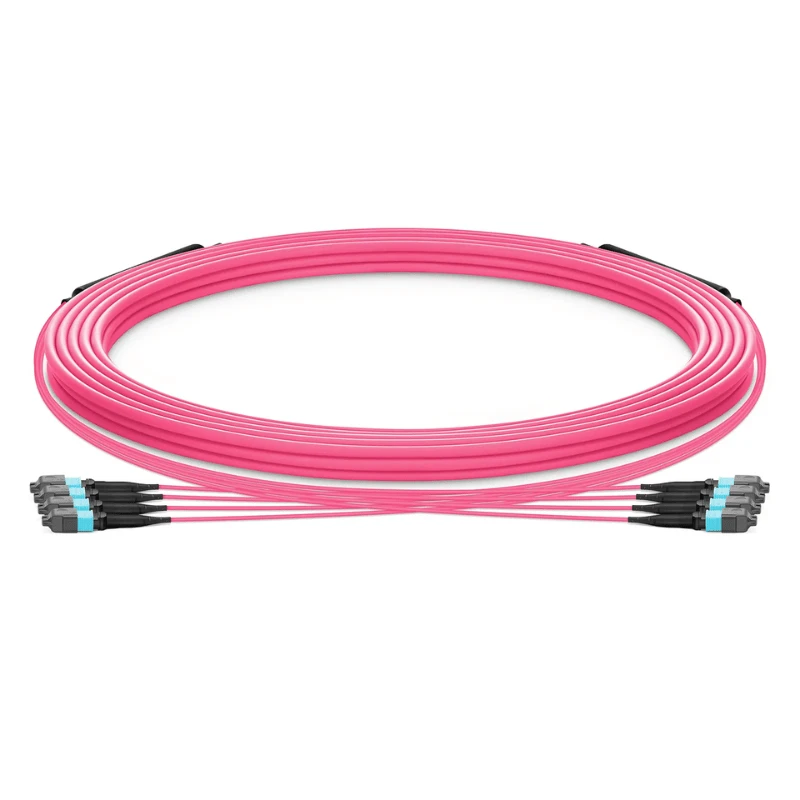

MPO Multimode Trunk Cable yog lub siab -ntaus fiber ntau sib dhos tsim los rau kev tsim cabling hauv cov ntaub ntawv chaw, chav tsev neeg rau zaub mov, thiab siab - ceev network ib puag ncig. Nws siv ua ntej-tawm MPO/MTP® connectors los sib sau ua ke ntau hom fiber ntau rau hauv kev sib txuas ntawm lub cev, txo qhov kev txiav tawm ntawm thaj chaw ua haujlwm thiab ua kom yooj yim rau siab - kev xa tawm ceev.

Muaj nyob rau hauv OM3, OM4, thiab OM5 multimode fiber ntau, lub cable tuaj yeem teeb tsa rau qhov sib txawv fiber ntau suav, kev sib txuas ntawm poj niam txiv neej, txoj kev polarity, cable ntev, thiab lub tsho yuav tsum.

Technical Specifications

Yam khoom	Specification
Hom Fiber	Multimode OM3 / OM4 / OM5
Fiber tub ntxhais	50/125 μm
Fiber suav	8/12/24 fibers; multi-MPO configurations muaj
Txuas	MPO / MTP®
Connector Poj Niam Txiv Neej	Txiv neej / Poj niam
Polarity	Hom A / Hom B / Hom C
Multimode Polish	PC
Insertion Loss	Standard Tsawg dua los yog sib npaug rau 0.35 dB; low-v versions Tsawg dua los yog sib npaug rau 0.20 dB
Cable Jacket	PVC / LSZH / OFNP, raws li kev teeb tsa
Hom kab	Round lossis bundled trunk tsim

Polarity & Kev xaiv poj niam txiv neej

Qhov tseeb polarity thiab connector poj niam txiv neej yog qhov tseem ceeb rau kev tswj kev xa tawm -mus rau - tau txais kev txuas mus ntxiv hauv qhov sib npaug - optics txuas.

Hom A

Ncaj nraim - los ntawm fiber ntau daim ntawv qhia.

Hom B

Rov qab fiber ntau daim ntawv qhia, feem ntau siv nyob rau hauv duplex parallel -optics architectures.

Hom C

Pair -reversed mapping for specific structured-cabing designs.

Txiv neej MPO

Pinned connector rau alignment nrog ib tug poj niam connector.

Poj niam MPO

Unpinned connector siv nrog txiv neej connector.

Qhov xav tau polarity yuav tsum tau teev tseg ua ke nrog cov khoom siv sib txuas, cov ntawv xov xwm, lossis thaj ua rau thaj - vaj huam sib luag tsim es tsis yog xaiv ntawm nws tus kheej.

Kev tsim kho kab

Lub rooj sib dhos lub cev siv lub Hoobkas-tawm multimode fiber ntau nrog kev tiv thaiv cable tsim nyog rau kev txhim kho khib thiab kev teeb tsa. Aramid yarn tuaj yeem siv los ua tus tswv cuab lub zog, thaum lub tsho sab nrauv tuaj yeem xaiv raws li qhov yuav tsum tau ua.

Kev xaiv lub tsho muaj xws li PVC rau kev siv sab hauv tsev, LSZH qhov tsawg- pa taws thiab halogen- yuav tsum muaj kev tsim kho dawb, thiab OFNP rau plenum- ntsuas kev teeb tsa. Cable txoj kab uas hla sib txawv nrog fiber ntau suav thiab lub cev teeb tsa, yog li qhov kawg sab nraud txoj kab uas hla yuav tsum tau lees paub ua ntej qhia txog txoj kev muaj peev xwm lossis cable- kev tswj hwm kho vajtse.

Data Center Applications

MPO Multimode Trunk Cable yog tsim rau:

Rack-rau-rack backbone kev sib txuas hauv siab -cov ntaub ntawv ceev ceev.
MPO thaj - vaj huam sib luag thiab cassette interconnections rau cov qauv cabling.
Hloov- mus rau - server thiab hloov - mus rau - hloov cov txuas uas siv cov khoom sib txuas multimode optics.
Cov cuab yeej cuab tam hauv chaw ua haujlwm uas ua ntej- cov rooj sib txoos tau txiav txim siab txo qhov chaw ua haujlwm.
Siab - kev hloov kho network ceev yuav tsum muaj fiber ntau dua nyob rau hauv qhov chaw khib nyiab tsawg.

Kev Xeem & Kev Pov Hwm Zoo

Txhua cable sib dhos tuaj yeem raug tshuaj xyuas thiab kuaj ua ntej xa khoom tuaj xyuas kom paub tseeb kev tsim khoom sib xws thiab kev ua haujlwm kho qhov muag.
Qhov zoo ib yam -cov txheej txheem tswj muaj xws li:

100% kev tso tawm -kev sim poob rau kev sib dhos ua tiav.
Xaus-kev tshuaj xyuas lub ntsej muag thiab ntxuav ntawm MPO connectors.
Connector polarity thiab fiber ntau daim ntawv pov thawj.

Connector poj niam txiv neej thiab kev txheeb xyuas.
Kev kuaj pom ntawm lub tsho cable, khau khiab, thiab qhov chaw tawg.
Cov ntaub ntawv ntsuam xyuas tus kheej muab raws li qhov xav tau ntawm qhov project.

Cov ntaub ntawv ntsuam xyuas tuaj yeem sib phim rau kev txheeb xyuas cov kab hluav taws xob lossis cov ntaub ntawv xaj rau kev tshuaj xyuas tuaj thiab qhov project traceability.

Customization & OEM

Rau OEM, qhov system-integrator, thiab qhov project xaj, lub cev cable tuaj yeem teeb tsa raws li qhov xav tau network architecture, suav nrog:

Fiber ntau: OM3 / OM4 / OM5

Fiber suav thiab MPO kom muaj nuj nqis

MPO/MTP® connector poj niam txiv neej

Hom A / B / C polarity

Standard los yog tsawg-tsis ua haujlwm kho qhov muag

Cable length thiab breakout length

PVC / LSZH / OFNP tsho

Cable ID, labeling, thiab xim yuav tsum tau

Cov neeg siv khoom - ntim tshwj xeeb thiab cov ntawv sau ntiag tug

Ntim & Xa

Ua tiav MPO lub cev cables raug tiv thaiv tus kheej los tiv thaiv kev sib kis kab mob, khoov, thiab cable puas thaum tuav thiab kev thauj mus los. Connector plua plav kaus mom, tiv thaiv wrapping, thiab thawv los yog lwm yam export - ntim tsim nyog tau teev raws li cov khoom xa tuaj.

Standard configurations yuav muab tau raws li ntau lawm muaj. Kev cai OEM cov rooj sib txoos tau teem caij raws li kev teeb tsa tsis yooj yim, muaj nuj nqis, kev xeem yuav tsum tau ua, thiab cov khoom muaj. Txhua qhov khoom xa tuaj tuaj yeem muab tau nrog kev txheeb xyuas cov khoom lag luam thiab cov ntaub ntawv siv tau rau kev kuaj xyuas.

FAQ

Q: Kuv yuav ua li cas thiaj paub tseeb tias lub cev cable yuav phim kuv MPO uas twb muaj lawm?

A: Paub meej tias lub connector interface, qhov tseem ceeb orientation, fiber ntau daim ntawv qhia, tus pin configuration, thiab mating tivthaiv specifications ntawm ob hnub. Rau qhov kev teeb tsa uas twb muaj lawm, muab MPO module tam sim no, adapter, lossis cable ib feem ntawm tus lej pab tiv thaiv kev tsis sib haum xeeb thaum hloov lossis nthuav dav.

Q: MPO lub cev cables puas tuaj yeem muab qhov ntev sib txawv rau tib qhov project?

A: Yog. Qhov sib txawv cable ntev tuaj yeem tsim nyob rau hauv tib qhov project specification. Cov neeg yuav khoom yuav tsum muab qhov ntev uas yuav tsum tau ua tiav thiab, yog tias tsim nyog, qhov tso cai rau kev tso cai kom rack routing thiab installation clearances tau npaj kom raug.

Q: Koj puas tuaj yeem muab cov qauv ua ntej kev txiav txim ntau?

A: Yog. Cov qauv tuaj yeem tsim tau rau kev kuaj xyuas ua ntej ntau lawm. Cov qauv yuav tsum siv tib qhov kev sib txuas sib txuas thiab cov kev cai tseem ceeb uas xav tau rau kev txiav txim ntau lawm kom sib haum thiab kev teeb tsa tuaj yeem kuaj xyuas raws li qhov project tiag tiag.

Q: Puas yog cable kos duab lossis cov ntaub ntawv seem muaj rau kev pom zoo engineering?

A: Yog. Dimensional drawings thiab configuration cov ntaub ntawv tuaj yeem muab rau kev tshuaj xyuas qhov project. Rau cov khoom sib dhos ua ke, cov neeg yuav khoom tuaj yeem lees paub qhov ntev tag nrho, kev sib txuas sib txuas, qhov ntev ntawm qhov sib tsoo, thiab kev txheeb xyuas cov cai ua ntej tsim khoom.

Q: Yuav ua li cas yuav MPO lub cev cables thaum lub sij hawm installation?

A: Tsis txhob rub lub cable los ntawm cov khoom sib txuas, tshaj qhov kev txwv khoov, lossis tso cov khoom hnyav dhau ntawm cov khoom tawg. Khaws lub ntsej muag kawg ntawm lub ntsej muag kom txog rau thaum kev sib txuas thiab xa lub cev los ntawm cov kab tsim nyog - tswj cov tshuab tsis muaj crushing lossis sharply dabtsi yog khoov lub rooj sib txoos.

Q: Puas yog tib lub MPO lub cev cable siv tau rau kev sib kis sib txawv?

A: Muaj peev xwm, tab sis kev sib raug zoo yog nyob ntawm hom transceiver, kev siv nyiaj siv kho qhov muag, kev sib kis, thiab kev sib txuas hauv network. Yog li ntawd, lub cable yuav tsum tau teev tseg rau cov khoom siv kho qhov muag tiag tiag thiab txuas cov kev cai es tsis yog xaiv los ntawm cov ntaub ntawv nominal xwb.
