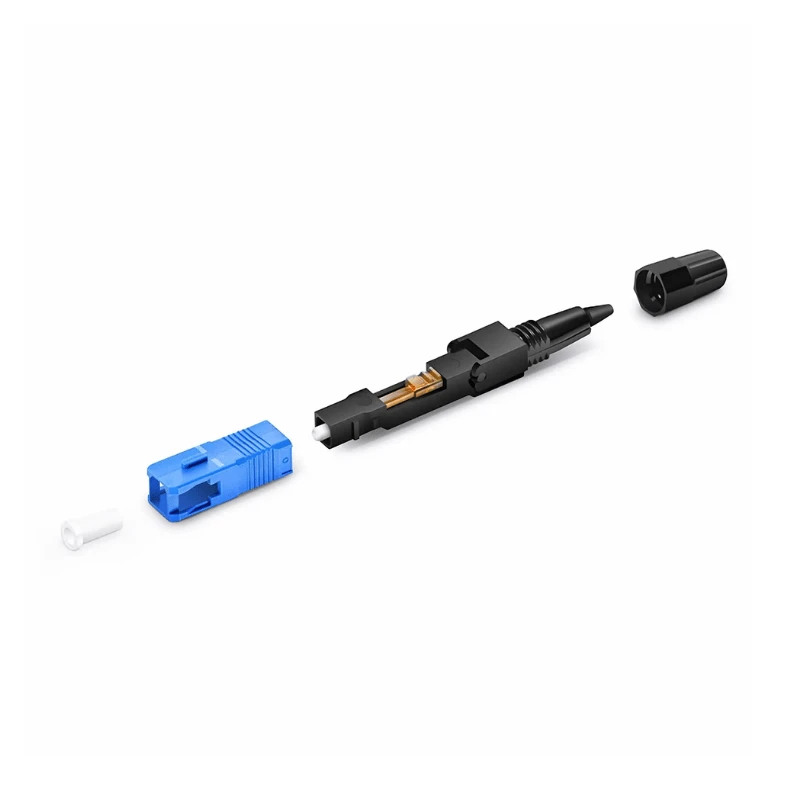

FC UPC Fiber Optic Cable Connector yog ib qho yooj yim ib qho - hom connector tsim los rau kev sib txuas fiber ntau ruaj khov qhov twg cov xov txuas txuas yog nyiam. Nws siv 9/125 μm OS2 ib zaug - hom fiber ntau, UPC kawg- ntsej muag polishing, thiab 2.0 mm cable khau raj raws li tus qauv teeb tsa. OEM configurations muaj rau cov neeg siv khoom - fiber ntau, cable, connector, thiab ntim khoom.
Connector Specifications
|
Parameter |
Specification |
|
Hom Connector |
FC/UPC |
|
Fiber hom |
Tib hom |
|
Hom Fiber |
9/125 μm OS 2 |
|
Hom Polish |
UPC |
|
Kev teeb tsa |
Simplex |
|
Standard Cable Diameter |
2.0mm ib |
|
Insertion Loss |
Tsawg dua lossis sib npaug li 0.3 dB raug |
|
Rov Los Los |
Ntau dua lossis sib npaug li 50 dB |
|
Ua haujlwm Wavelength |
1310/1550 nm |
|
Ua haujlwm kub |
-40℃rau +75 degree |
|
Mating Durability |
Ntau tshaj lossis sib npaug rau 500 cycles |
|
Ua raws |
IEC 61754-13, TIA/EIA-604-4, RoHS |
Connector Structure & Tsim
FC/UPC connector muaj 2.5 hli precision ferrule, connector lub cev, alignment key, threaded coupling txiv ntoo, thiab strain-relief khau raj.
Zirconia ceramic ferrule
Muab kev sib raug zoo fiber ntau thiab ruaj khov kawg - ntsej muag.
01
UPC{0}} polished kawg lub ntsej muag
Siv Ultra Physical Contact geometry los txo qhov kev xav rov qab kho qhov muag.
02
Threaded coupling txiv ntoo
Ruaj ntseg lub connector mus rau ib tug tshaj FC adapter los yog cov khoom siv interface thiab muab kev tiv thaiv rau loosening los ntawm kev co.
03
Alignment key
Tswj connector orientation thaum mating.
04
Lim- khau raj khau raj
Tiv thaiv txoj kev hloov ntawm txoj kab hluav taws xob los ntawm kev khoov ntau dhau thiab kev ntxhov siab ntawm txhua yam.
05
Fiber & Cable Compatibility
Tus qauv version yog tsim los rau 9/125 μm OS2 ib zaug - hom fiber ntau nrog 2.0 mm cable txoj kab uas hla. Rau qhov project- cov kev sib dhos tshwj xeeb, kev tsim cov kab sib txuas tuaj yeem tsim kho raws li qhov yuav tsum tau muaj fiber ntau thiab lub tsho tshwj xeeb.
Cable txoj kab uas hla, lub tsho tsim, hom fiber ntau, thiab txuas polish yuav tsum tau lees paub tiv thaiv cov khoom siv interface thiab kho qhov muag ua ntej ntau lawm.
Daim ntawv thov
FC / UPC connector yog tsim rau cov ntawv thov uas yuav tsum muaj threaded, mechanically ruaj ntseg fiber ntau interface, suav nrog:
Telecom networks:Tib - cov khoom siv kis tau tus mob thiab fiber ntau faib tshuab
Optical test khoom:OTDRs, optical fais fab ntsuas, thiab ntsuas ntsuas
Muaj fiber ntau networks:Cov cuab yeej raug vibration lossis nquag siv tshuab
CATV thiab tshaj tawm cov tshuab:Fiber- raws li cov khoom siv xaim hluav taws xob
Data center thiab khoom siv sib txuas:Tib - hom kev txuas siv FC interfaces
OEM optical sib dhos:Ua ntej-tawm cables, pigtails, thiab cov khoom siv- cov rooj sib txoos tshwj xeeb
Customization / OEM
Rau kev txiav txim ntim thiab cov khoom siv sib xyaw ua ke, cov khoom sib txuas tuaj yeem muab tau raws li cov neeg siv khoom kos duab, cable specifications, lossis cov kev xav tau sib dhos.
Customization tuaj yeem suav nrog:
FC / UPC, FC / APC, lossis lwm yam kev teeb tsa
0.9 hli, 2.0 hli, 3.0 hli, los yog cov kab uas hla
OS1, OS2, thiab siv tau ntau hom fiber ntau
PVC, LSZH, plenum, lossis ruggedized cable tsho
Kev cai cable ntev thiab lub tsho xim xim
Connector lub cev txheeb xyuas thiab cov neeg siv khoom labeling
OEM ntim, kitting, thiab ua ntej - txiav cable sib dhos
Kev Tshawb Fawb & Kev Xeem
Kev soj ntsuam zoo yuav tsum suav nrog ob qho tib si kho qhov muag kev ua tau zoo thiab kev ntseeg tau ntawm txhua yam. Cov kev tswj xyuas ntau lawm muaj xws li:
Xaus-kev tshuaj xyuas ntsej muag:Ferrule geometry, paug, khawb, chips, thiab polishing mob
Insertion poob testing:Kev pov thawj tawm tsam qhov txwv tsis pub kho qhov muag
Rov qab los xeem:Kev lees paub ntawm qhov xav tau UPC rov qab - kev ua haujlwm rov qab
Mating durability:Rov ua dua qhov kev sib txuas / kev sib cais
Tensile thiab mechanical soj ntsuam:Kev pov thawj ntawm cov khoom sib txuas- mus rau -kev tuav pov hwm cable thiab strain- kev ntseeg siab
Environmental xeem:Kev ntsuas kub thiab lwm yam kev ntsuas ib puag ncig pom zoo rau qhov project- cov cai tshwj xeeb
Dimensional soj ntsuam:Ferrule, vaj tse, qhov tseem ceeb, coupling Cheebtsam, thiab cable interface qhov ntev
Cov ntaub ntawv ntsuam xyuas thiab cov ntaub ntawv soj ntsuam tuaj yeem muab tau raws li qhov kev pom zoo yuav khoom lossis qhov yuav tsum tau ua kom zoo.
FAQ
Q: Qhov txawv ntawm FC / UPC thiab FC / APC connectors yog dab tsi?
A: FC/UPC thiab FC/APC siv tib lub FC threaded interface tab sis muaj qhov sib txawv ferrule kawg -fim geometries. UPC feem ntau yog siv rau tus qauv ib zaug - hom kev sib txuas, thaum APC raug xaiv thaum xav tau kev xav rov qab. Ob hom polishing yuav tsum tsis txhob muab sib xyaw rau hauv tib qhov kev sib txuas kho qhov muag.
Q: Cov connector no puas tuaj yeem muab tau los ua fiber ntau optic pigtail lossis thaj qaum?
A: Yog. Lub connector tuaj yeem sib sau ua ke rau pigtails, patch cords, thiab lwm yam ua ntej - txiav fiber ntau sib dhos.
Q: Cov ntaub ntawv dab tsi yuav tsum tau muab thaum thov cov lus hais?
A: Rau cov lus hais kom raug, cov neeg yuav khoom yuav tsum muab cov khoom sib txuas thiab txhuam, hom fiber ntau, txoj kab uas hla, cable ntev, cov khoom siv lub tsho, kev txiav txim kom muaj nuj nqis, ntim cov khoom, thiab qhov chaw. Kev kos duab lossis qauv tuaj yeem muab tau thaum lub rooj sib txoos tsis muaj - qhov loj me.
Q: Cov qauv puas tuaj yeem muab ua ntej kev txiav txim ntau?
A: Yog. Ua ntej- cov qauv tsim khoom tuaj yeem npaj rau kev qhia tshwj xeeb thiab kev pom zoo ua ntej ntim khoom. Cov qauv yuav tsum tau txheeb xyuas qhov tseeb connector configuration thiab cable tsim yuav tsum tau rau lub npaj bulk xaj.
Q: Lub sij hawm xa khoom ntau npaum li cas rau kev txiav txim ntau?
A: Lub sij hawm xa tuaj yog 7-14 hnub rau kev ua thiab 20-30 hnub rau kev xa khoom. Hnub tuaj txog tiag tiag nyob ntawm qhov chaw, txoj kev xa khoom, thiab kev lis kev cai clearance. Rau qhov ceev lossis loj - ntim xaj, lub sijhawm xa khoom yuav tsum tau lees paub ua ntej xaj xaj.
Q: Cov nqe lus shipping thiab xa khoom dab tsi muaj rau kev txiav txim thoob ntiaj teb?
A: Kev txiav txim tuaj yeem xa tuaj raws li EXW, DAP, lossis DDP cov ntsiab lus, nyob ntawm qhov chaw thiab cov kev xav tau. EXW yog qhov tsim nyog thaum tus neeg yuav khoom npaj kev thauj mus los, thaum DAP / DDP tuaj yeem ua kom yooj yim qhov rooj - mus rau - qhov rooj xa khoom. Txoj kev xa khoom siv tau thiab Incoterm yuav tsum tau lees paub thaum thov cov lus hais.
Q: Lub ntim twg yog siv rau kev txiav txim xa tawm?
A: Txheem export ntim tuaj yeem suav nrog cov hnab tiv thaiv ib tus neeg lossis lub kaus mom, cov thawv sab hauv, thiab cov thawv sab nraud ntxiv. Rau qhov loj lossis ntev - kev thauj mus los nyob deb, ntim tuaj yeem hloov kho raws li qhov kev txiav txim kom muaj nuj nqis, txoj kev thauj mus los, thiab cov neeg siv khoom xav tau.
