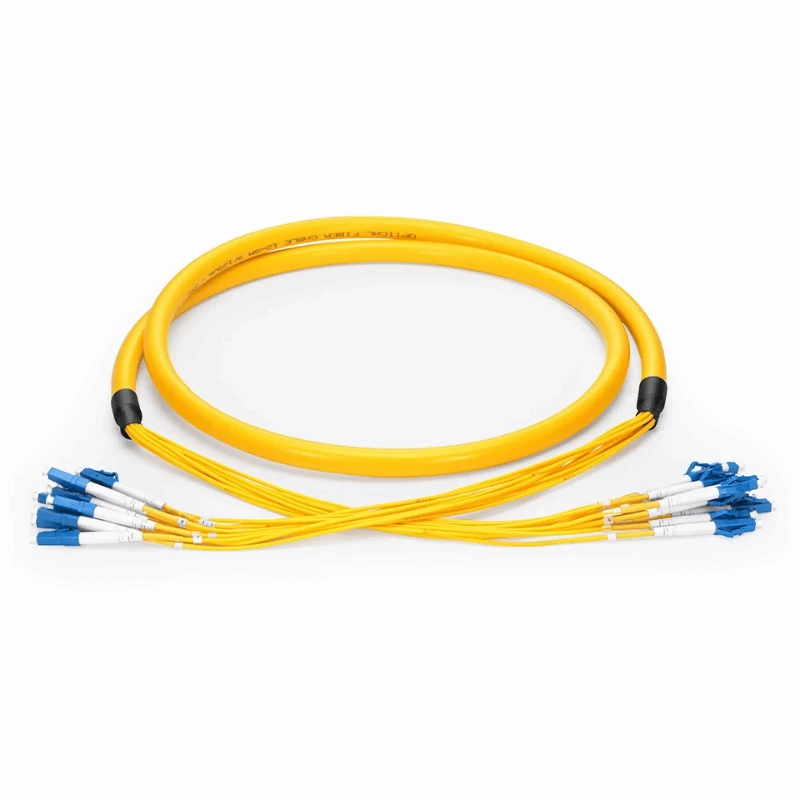

MPO Rau LC Tib Hom Fiber Cable yog lub Hoobkas - txiav tawm OS2 kev sib dhos uas hloov pauv ntau - fiber ntau MPO / MTP interface rau hauv ib qho kev sib txuas LC duplex.
Technical Specifications
|
Parameter |
Specification |
|
Yam khoom |
MPO rau LC Tib Hom Fiber Cable |
|
Hom Fiber |
OS2 Single Mode, 9/125 μm |
|
Fiber Qib |
G.652.D / G.657.A1 |
|
Fiber suav |
8 / 12 / 24 fibers |
|
MPO Connector |
MPO / MTP Tau tshaj, Txiv neej / Poj niam |
|
MPO Polish |
UPC / APC |
|
LC Connector |
LC Duplex |
|
LC Polish |
UPC / APC |
|
Polarity |
Hom A / Hom B / Hom C |
|
Insertion Loss |
Standard Loss Tsawg dua los yog sib npaug rau 0.35 dB; Kev poob qis tsawg dua lossis sib npaug li 0.20 dB |
|
Rov Los Los |
UPC Ntau dua lossis sib npaug li 50 dB; APC Ntau dua lossis sib npaug rau 60 dB |
|
Cable Ntev |
Kev cai |
|
Breakout Length |
Kev cai |
|
Jacket Options |
LSZH/OFNP |
|
Ua haujlwm kub |
-20℃rau +70 degree |
|
Kev kuaj pom qhov muag |
Insertion Poob / Rov Los Poob |
|
Cov ntaub ntawv xeem |
Daim Ntawv Qhia Txog Kev Ntsuas Tus Kheej |
|
Txuj |
IEC 61300-3-35: Cov |
MPO-rau-LC Breakout Configuration
Lub cable siv ntau- fiber ntau MPO / MTP interface ntawm ib sab thiab cais cov fibers ib leeg los ntawm ib qho kev sib cais rau hauv LC duplex kev sib txuas ntawm sab nraud.
Tus qauv duplex kev sib raug zoo ntawm MPO fiber ntau suav thiab LC kev sib txuas yog:
|
MPO Fiber suav |
Standard LC Duplex Arrangement |
|
8 Fibers |
4 × LC Duplex |
|
12 Fibers |
6 × LC Duplex |
|
24 fibers |
12 × LC Duplex |
LC - sab fiber ntau yog txiav txim siab los ntawm kev pom zoo fiber ntau daim ntawv qhia es tsis yog suav fiber ntau ib leeg.
Configuration & Verification
Ua ntej tsim khoom, MPO-rau-LC configuration yuav tsum tau kuaj xyuas cov kev sib txuas sib txuas thiab cov kev xav tau kho qhov muag ntawm qhov txuas npaj.
Connector Configuration
Qhia meej MPO poj niam txiv neej thiab polish raws li kev sib tw MPO interface. Sab LC siv cov khoom sib txuas nrog rau UPC lossis APC polish.
Polarity & Fiber Mapping
Xaiv Hom A, Hom B, lossis Hom C raws li qhov xav tau fiber ntau daim ntawv qhia thiab cov txheej txheem txuas MPO uas twb muaj lawm. Yog tias qhov xav tau polarity tsis meej, ib qho kev qhia cable uas twb muaj lawm lossis daim duab sib txuas tuaj yeem muab rau kev pom zoo.
Optical Poob
Xaiv tus qauv - poob lossis qis - poob kev teeb tsa raws li kev nkag mus - poob peev nyiaj ntawm qhov ua tiav qhov txuas txuas.
Cable Dimensions
Paub meej tias tag nrho cov cable ntev thiab ntev breakout raws li cov cuab yeej layout thiab yuav tsum tau LC txuas txoj hauj lwm.
MPO-rau-LC Assembly Manufacturing
Specification-Based Assembly
Txhua lub rooj sib dhos yog tsim los ntawm kev paub tseeb fiber ntau suav, txuas txuas, polarity, fiber ntau daim ntawv qhia, thiab cable qhov ntev, nrog rau kev pom zoo siv raws li kev siv ntau lawm.
MPO / MTP & LC Termination
Lub MPO/MTP thiab ib tus neeg LC duplex connectors yog lub Hoobkas- txiav tawm raws li cov txheej txheem txuas txuas thiab polish siv tswj kev txiav thiab tshuaj xyuas cov txheej txheem.
Tswj Breakout
Lub breakout seem cais cov fibers rau hauv cov kev sib txuas LC uas tau teev tseg thaum tswj xyuas qhov kev pom zoo fiber ntau los ntawm cov txheej txheem sib dhos.
Tswjhwm ntau lawm
DIMI's fiber ntau-optic los ua ke ntau lawm tau txais kev txhawb nqa los ntawm kev soj ntsuam kho qhov muag thiab tshuaj xyuas cov khoom siv rau kev sib txuas thiab kev ua haujlwm kho qhov muag pom tseeb ua ntej xa khoom.
Kev Ntsuas & Kev Tshuaj Xyuas
100% Optical Test
Txhua qhov kev sib dhos ua tiav dhau los ua qhov poob thiab rov ua qhov kev sim ua ntej xa khoom los xyuas qhov kev ua haujlwm kho qhov muag tiv thaiv cov kev cai.
Connector End-Kev tshuaj xyuas ntsej muag
MPO / MTP thiab LC connector kawg lub ntsej muag raug tshuaj xyuas rau kev sib kis, khawb, qhov, thiab lwm yam kev mob uas yuav cuam tshuam rau kev sib txuas sib txuas lossis kev ua haujlwm kho qhov muag.
3D Geometry Verification
Qhov twg tau teev tseg rau kev teeb tsa kev sib txuas, kev tshuaj xyuas interferometric txheeb xyuas qhov txuas kawg - ntsej muag geometry, suav nrog fiber ntau qhov siab, lub vojvoog ntawm curvature, thiab apex offset.
Test Cov ntaub ntawv & Traceability
Cov ntaub ntawv kho qhov muag ntawm tus kheej tuaj yeem muab rau cov khoom xa tuaj, nrog rau cov ntaub ntawv xeem uas txuas nrog rau kev txheeb xyuas cov khoom lag luam uas siv tau.
Qhov project-Kev teeb tsa tshwj xeeb
Rau kev hais lus, cov neeg yuav khoom tuaj yeem muab cov ntaub ntawv xav tau los txheeb xyuas thiab txheeb xyuas MPO-rau-LC los ua ke:
Kev sib txuas lus Paub meej
MPO interface thiab connector poj niam txiv neej
Fiber suav
Polarity thiab fiber ntau daim ntawv qhia
MPO thiab LC polish yuav tsum
Cov ntsiab lus ntawm lub cev
Tag nrho cov kab ntev
Breakout ntev
Jacket xav tau
Order Paub meej
Yuav tsum muaj kom muaj nuj nqis
Labeling los yog kev txheeb xyuas cov cai
Ntim cov cai
Thaum lub polarity los yog fiber ntau daim ntawv qhia tsis meej, ib tug uas twb muaj lawm cable specification, kev twb kev txuas daim duab, mating interface, los yog cov ntaub ntawv khoom siv yuav muab rau configuration xyuas ua ntej ntau lawm.
Rau kev txiav txim rov qab, qhov kev pom zoo ua ntej kev tsim khoom tuaj yeem raug xa mus kom tswj tau qhov kev pom zoo tib yam thaum qhov kev xav tau tseem tsis hloov pauv.
FAQ
Q: Qhov txawv ntawm MPO rau LC breakout cable thiab MPO lub cev cable yog dab tsi?
A: Ib qho MPO rau LC breakout cable hloov ntau - fiber ntau MPO / MTP interface rau ib tus neeg LC duplex kev sib txuas, thaum MPO lub cev cable tuav MPO / MTP kev sib txuas ntawm ob qho kawg rau ntau - fiber ntau kev sib txuas.
Q: Qhov txawv ntawm MPO thiab MTP rau MPO rau LC cable yog dab tsi?
A: MPO yog tus qauv multi-fiber connector interface, thaum MTP yog siab dua -kev ua tau zoo connector tsim raws li MPO interface. Qhov yuav tsum tau connector configuration yuav tsum tau matched rau mating interface teev rau lub installation.
Q: Yuav ua li cas xaiv MPO rau LC cable rau kev hloov kho?
A: Sib piv cov hloov cable rau cov suav fiber ntau, MPO interface, connector poj niam txiv neej, polarity, fiber ntau daim ntawv qhia, LC configuration, cable qhov ntev, thiab optical xav tau ua ntej xaj.
Q: Yuav ua li cas MPO rau LC cable cuam tshuam rau optical link pob nyiaj siv?
A: Lub rooj sib txoos ntxiv cov khoom sib txuas thiab kev txiav tawm poob rau qhov sib txuas kho qhov muag, yog li nws cov lus teev lossis ntsuas qhov poob yuav tsum suav nrog thaum xam qhov muaj qhov poob qis.
Q: Dab tsi khoov vojvoog yuav tsum tau txiav txim siab rau MPO rau LC breakout cable?
A: Qhov tsawg kawg nkaus khoov vojvoog yuav tsum tau lees paub los ntawm cov kev xaiv cable tsim thiab txiav txim siab rau ob qho tib si hauv lub ntsiab cable thiab thaj tsam breakout thaum routing lub rooj sib txoos los ntawm cov chaw txwv.
Q: Cov ntaub ntawv xeem twg yog muab nrog MPO rau LC ib hom fiber ntau cable?
A: Cov ntaub ntawv kho qhov muag ntawm tus kheej rau kev xa khoom tuaj yeem muab tau, suav nrog kev ntsuas qhov poob thiab rov qab cov txiaj ntsig rov qab los tshuaj xyuas tawm tsam cov cai teev tseg.
Q: MOQ rau MPO rau LC Ib Hom Fiber Cable yog dab tsi?
A: Tus qauv MOQ yog 500 daim rau ib qho kev teeb tsa, nrog rau qhov kawg kom paub tseeb raws li qhov xav tau fiber ntau suav, txuas txuas, thiab qhov yuav tsum tau ua.
Q: Lub sijhawm ua haujlwm rau MPO rau LC Ib Hom Fiber Cable yog dab tsi?
A: Cov qauv feem ntau tuaj yeem ua tiav hauv 3-5 hnub ua haujlwm, thaum cov khoom tsim ntau feem ntau xav tau 15-30 hnub ua haujlwm, nyob ntawm qhov kev pom zoo thiab kev txiav txim kom muaj nuj nqis.
