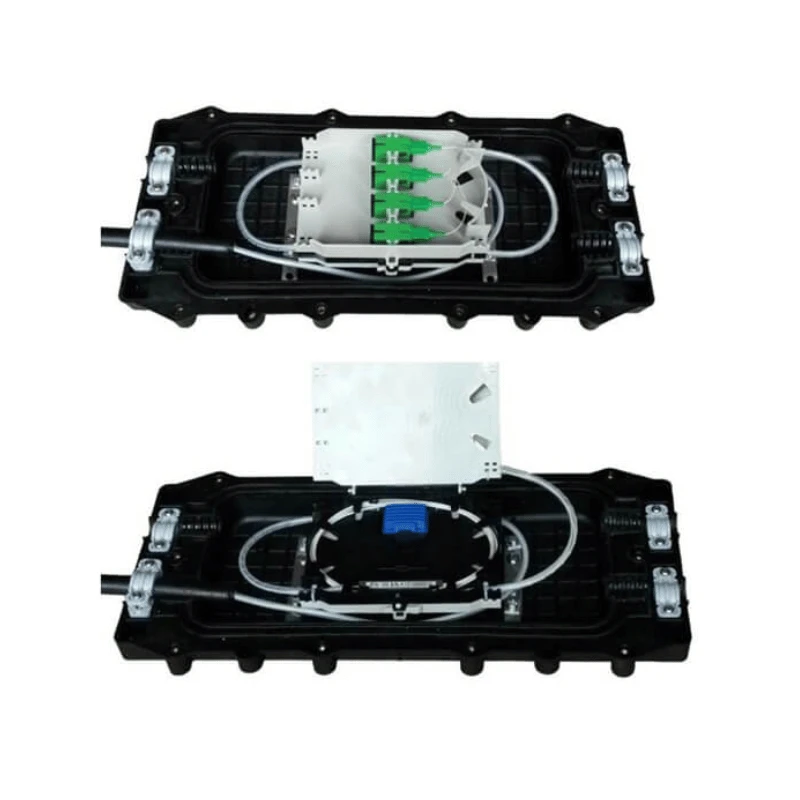

Lub 48 Fiber Optic Splice Kaw yog ib qho ntsug dome- hom enclosure rau kev tiv thaiv thiab teeb tsa txog 48 fiber ntau splices nyob rau sab nraum zoov fiber ntau optic tes hauj lwm. Nws yog tsim rau aerial, ncej, phab ntsa, duct, thiab underground daim ntaub ntawv, nrog ib tug compact qauv haum rau ntsug installation thiab thaj chaw tu.
Technical Specifications
|
Yam khoom |
Specification |
|
Hom kaw |
Mini ntsug dome |
|
Maximum Splice Capacity |
48 fibers ua |
|
Splice Tais |
12 fibers / tais |
|
Yam tsawg kawg nkaus kom muaj nuj nqis |
4 |
|
Khoom siv tsev |
PP + GF (Polypropylene + iav Fiber) |
|
Hom sealing |
Mechanical compression foob |
|
Cable Ports |
4 |
|
Cable Diameter |
Φ8-18mm txheem; qhov loj me muaj nyob ntawm kev teeb tsa |
|
Qib tiv thaiv |
IP68 |
|
Ua haujlwm kub |
-40℃rau +65 degree |
|
Cia Kub |
-40℃rau +60 degree |
|
Qhov ntev |
Kwv yees li. Φ120 × 300 hli |
|
Qhov hnyav |
Kwv yees li . 1.5–1.8 kg nrog cov tais thiab cov khoom siv ntxiv |
|
Ua raws |
RoHS, REACH; GR-771-raws li kev tsim nyog muaj |
Kaw Structure & Internal Configuration
Cov qauv dome ntsug cais cov txheej txheem sealing sab nraud los ntawm cov fiber ntau sab hauv- thaj chaw tswj hwm, pab tiv thaiv splices thaum lub sijhawm teeb tsa thiab kev saib xyuas tom qab.
Lub koom haum sab hauv muaj txog li plaub 12- fiber ntau splice tais. Txhua lub tais muab kev tiv thaiv splice thiab fiber-routing txoj hauv kev, thaum cov txheej txheem sib dhos tso cai rau ib tus neeg cov tais nkag mus yam tsis tau rov tsim dua qhov kaw tiav.
Fiber routing yuav tsum tuav qhov tsawg kawg nkaus khoov vojvoog ntawm cov ntsia hlau fiber ntau thiab tiv thaiv kev nruj heev, hla, los yog compression nyob ib ncig ntawm splice cov ntsiab lus. Thaum tshav kub kub-shrink splice lub tes tsho tuaj yeem ruaj ntseg rau hauv lub tais tuav.
Splicing Capacity & Cable Compatibility
Tus txheej txheem teeb tsa muab 48-fiber ntau tshaj qhov sib txuas, ua rau qhov kaw tsim nyog rau cov ntsiab lus faib khoom uas suav fiber ntau yog nruab nrab tab sis yuav tsum muaj kev saib xyuas yav tom ntej.
Cable compatibility muaj xws li xoob- raj thiab hauv nruab nrab- raj sab nraum zoov fiber ntau cables nyob rau hauv qhov chaw nres nkoj txoj kab uas hla. Ribbon-fiber configurations kuj yuav raug txiav txim siab thaum lub splice tray thiab internal organizer tsim raws li.
Rau qhov kev txiav txim, kev tsim kho cable, sab nraud txoj kab uas hla, tus naj npawb ntawm cov nkag / tawm cables, suav fiber ntau, thiab cov txheej txheem splice yuav tsum tau lees paub ua ntej xaiv qhov chaw nres nkoj thiab lub tais teeb tsa.
Installation & Application
Qhov kaw yog tsim los rau kev teeb tsa hauv teb thiab rov- nkag, nrog rau cov txheej txheem sib khi uas tsis txhob xav tau cov cua sov mus tas li-shrink sealing ntawm lub ntsiab kaw lub cev.
Tej qhov chaw installation muaj xws li:
- Kev sib txuas hauv huab cua ntawm tus ncej lossis tus xa xov - txhawb nqa cables
- Ncej thiab phab ntsa mounting rau kev nkag tau -cov ntsiab lus faib network
- Underground ducts thiab handholes
- Direct- daim ntawv thov faus thaum xaiv qhov kev teeb tsa thiab kev teeb tsa raws li qhov yuav tsum tau ua
Ua ntej kev teeb tsa, cov kws tshaj lij yuav tsum txheeb xyuas kab kab kab, kev teeb tsa chaw nres nkoj, splice- lub tais muaj peev xwm, qhov ntev fiber ntau slack, thiab kho vajtse mounting. Cov tswvcuab lub zog yuav tsum tau ua kom ruaj ntseg rau qhov kaw qhov kev teeb tsa cov ntsiab lus tsis yog hloov cov khoom siv kho tshuab mus rau lub tais splice.
Kev tiv thaiv ib puag ncig
Lub vaj tsev yog tsim los ntawm iav - fiber ntau - siv zog polypropylene (PP + GF) los muab cov neeg kho tshuab lub zog thiab tiv thaiv tawm sab nraum zoov. Lub tshuab compression sealing system siv gaskets nyob ib ncig ntawm lub kaw thiab cable- nkag mus rau qhov txwv tsis pub dej thiab cov khoom tsis huv.
Cov qib kev tiv thaiv tau teev tseg yog IP68, nrog rau kev teeb tsa thawj zaug rau submersion tsis kam mus rau 1.5 m rau 60 feeb.
Customization & OEM
Rau cov lag luam wholesale, tus neeg nqa khoom, thiab qhov project-raws li kev txiav txim, qhov kaw tuaj yeem teeb tsa raws li qhov xav tau network architecture thiab cable specification.
Muaj customization muaj xws li:
Splice muaj peev xwm:12f, 24f, 48f thiab lwm yam kev teeb tsa
Chaw nres nkoj kev npaj:Sib txawv inlet / qhov hluav taws xob ua ke
Cable - nkag txoj kab uas hla:Customized rau cable od thiab sealing yuav tsum
Splice tais:Ib leeg -fiber lossis project- tshwj xeeb kev teeb tsa tais
Tsev nyob:Cov khoom siv, xim, thiab cov qauv kev hloov kho
Branding:Logo, khoom code, cov ntawv lo, qr codes, thiab ntim
Mounting accessories:Ncej brackets, phab ntsa brackets, aerial hardware, thiab lwm yam project-cov khoom siv tshwj xeeb
Kev soj ntsuam zoo
Kev tshuaj xyuas cov khoom nkag rau PP + GF vaj tsev, gaskets, tais, thiab cov khoom siv hlau
Dimensional soj ntsuam ntawm vaj tse, cable ports, tais, thiab mounting interfaces
Kev tshuaj xyuas los ua ke rau kev tso lub tais, kho cov kab hluav taws xob, fiber ntau- cov khoom sib txuas, thiab kaw haum
Kev kuaj xyuas lub cev kaw thiab cable- cov ntsiab lus nkag
IP68 ingress xeem raws li cov txheej txheem kuaj pom zoo
Kev ntsuam xyuas cov tshuab xws li kev cuam tshuam, compression, thiab kev tuav cable yog qhov xav tau
Kev ntsuas kub thiab ib puag ncig rau qhov project-kev txiav txim tshwj xeeb
Kev kuaj pom thiab ua haujlwm ua ntej ntim
Rau cov haujlwm xa tawm, cov ntaub ntawv tshuaj xyuas, cov ntaub ntawv pov thawj, cov ntaub ntawv xeem, thiab RoHS/REACH-cov ntaub ntawv ua raws cai tuaj yeem muab tau raws li tus neeg yuav khoom cov ntaub ntawv xav tau.
FAQ
Q: Puas yog qhov kaw yuav tsum muaj cov cuab yeej tshwj xeeb rau kev teeb tsa?
A: Txuj kev teeb tsa feem ntau yuav tsum muaj cov kab sib txuas -kev npaj thiab fiber ntau- cov cuab yeej sib txuas. Cov cuab yeej siv tiag tiag nyob ntawm qhov xaiv cable- nkag thiab kaw qhov teeb tsa. Cov lus qhia kev teeb tsa tuaj yeem muab nrog rau kev xa khoom.
Q: Ntau npaum li cas fiber ntau slack yuav tsum tau tso rau hauv lub kaw?
A: Cov slack txaus yuav tsum tau tshwj tseg kom tso cai rau cov fibers mus rau hauv cov tais uas tsis muaj qhov nro ntau dhau los yog nruj khoov. Qhov ntev yuav tsum tau nyob ntawm kev siv cable, splice-tray layout, thiab txoj kev teeb tsa thiab yuav tsum tau lees paub tiv thaiv cov lus qhia uas siv tau.
Q: Cov kab hluav taws xob tsis siv puas tuaj yeem raug kaw rau yav tom ntej nthuav dav?
A: Yog. Cov khoom siv tsis siv yuav tsum raug kaw nrog cov khoom sib khi uas tau teev tseg kom muaj kev tiv thaiv kev tiv thaiv. Spare chaw nres nkoj sealing qhov chaw tuaj yeem suav nrog thaum yav tom ntej kev nthuav dav cable xav tau.
Q: Lub kaw puas tuaj yeem ua raws li txoj hauv kev sib txawv?
A: Qhov kaw tuaj yeem teeb tsa rau kev sib xyaw ua ke -splice daim ntawv thov siv tau tshaj splice tes tsho thiab cov tais. Yog hais tias txhua yam splices los yog ribbon - fiber ntau splicing yuav tsum tau, lub tais thiab sab hauv configuration yuav tsum tau paub tseeb hais tias ua ntej kev txiav txim.
Q: Puas yog grounding muaj rau cov hlau fiber ntau optic cables?
A: Yog. Cov khoom siv hauv av tuaj yeem muab tau thaum xav tau rau cov cables uas muaj cov tswv cuab ntawm lub zog hlau, cov cuab yeej siv, lossis lwm yam khoom siv hluav taws xob. Kev npaj hauv av yuav tsum tau teev tseg raws li kev tsim kho cable thiab cov kev cai hauv zos.
Q: Yuav ua li cas kaw cov khoom xa tuaj thoob ntiaj teb?
A: Txhua qhov kaw yog ib txwm muaj kev tiv thaiv nrog cov ntim khoom tsim nyog thiab tom qab ntawd ntim rau hauv cov ntawv xa tawm - qib cartons. Qhov loj dua lossis qhov project- raws li qhov ntau tuaj yeem ntim rau hauv cov rooj ntoo plywood lossis pallets thaum xav tau los txo kev tuav thiab kev thauj mus los.
Q: Lub sij hawm xa tuaj rau tus qauv txiav txim yog dab tsi?
A: Lub sij hawm xa tuaj yog 7-14 hnub rau kev ua haujlwm thiab kwv yees li 20-30 hnub rau kev xa khoom. Lub sijhawm xa khoom tiag tiag nyob ntawm qhov chaw, txoj kev xa khoom, thiab kev lis kev cai clearance.
Q: Cov nqe lus them nqi dab tsi muaj?
A: EXW, DDP, thiab DAP tuaj yeem muab tau raws li qhov xav tau thiab xaj xaj.
